Plastic Extrusion Head Selection: A Beginner’s Guide to Choosing the Right Die
Choose the right plastic extruder head and get it right the first time!
In plastic extrusion, the die is the “birth canal” of your product.
Choose correctly—production flows smoothly, quality is stable.
Choose wrong—you may lose months of time and thousands in cost.
At SPiDER Extrusion, with over 38 years of experience, we’ve seen this story too many times.
The good news? It’s easy to avoid.
Once you understand a few key principles, even beginners can make expert-level decisions.
Three main types of plastic extruder heads: Simplified for Beginners
1. T-Die — For Flat Products
Applications: plastic film, sheet, packaging materials.
Quick tips:
Product is wide and thin → choose a T-Die.
Think of pressing dough into a thin pancake — that’s what a T-Die does.
It evenly spreads molten plastic into a smooth, consistent sheet.
2. Tube & Wire Die — For Round Products
Applications: water pipes, cable jackets, medical tubes, soft or rigid hoses.
Two common types:

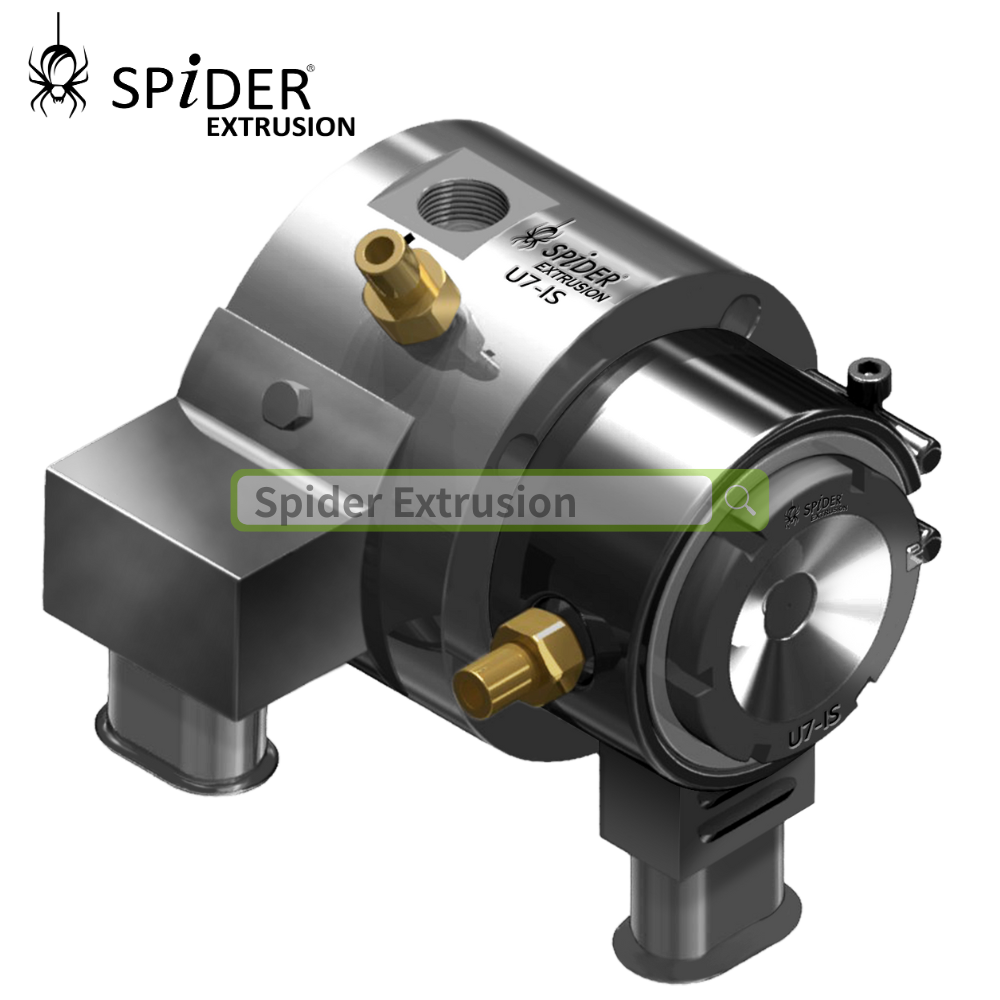

Crosshead Die – side-fed, ideal for coating conductors or multilayer extrusion.
Straight Die – front-fed, best for single-layer extrusion.
Still unsure? → Contact SPiDER Extrusion for a free evaluation.
3..Profile Die — For Complex Shapes
Applications: window frames, door seals, automotive trims, decorative profiles.
Ask yourself :
Does your product have variable thickness?
Is it not a simple round or flat shape?
Does it include grooves or snap-fits?
If any answer is “Yes,” you need a profile die.
How to make the right choice of plastic extrusion head

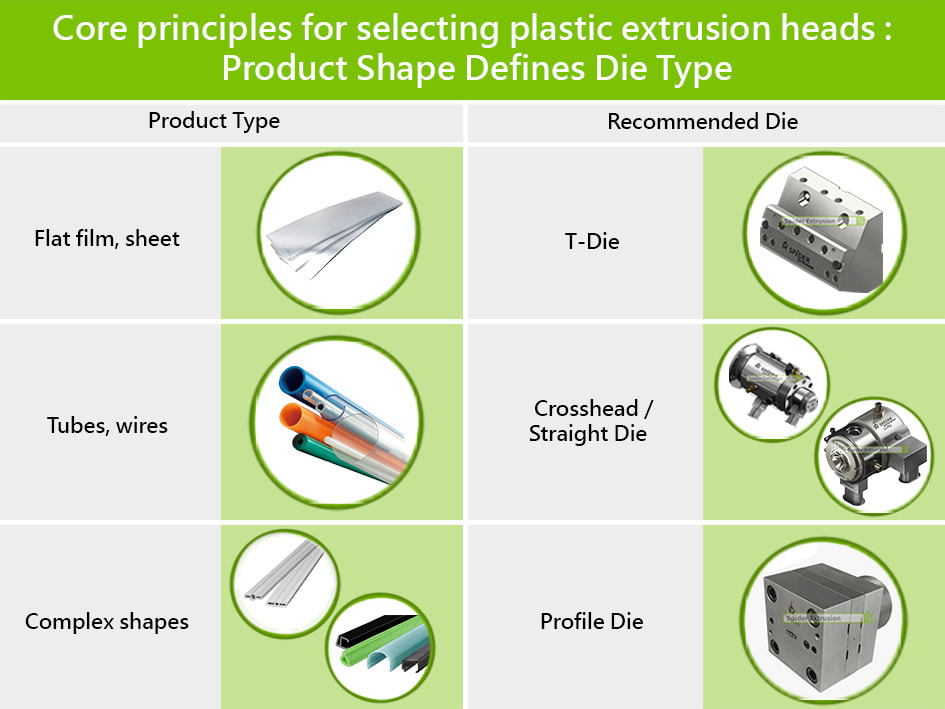

Core principles for selecting plastic extrusion heads : Product Shape Defines Die Type
Product Type Recommended Die
Flat film, sheet T-Die
Tubes, wires Crosshead / Straight Die
Complex shapes Profile Die
Plastic Extrusion Head Selection Q&A
Q1: I’m a beginner. Where do I start?
→ Tell us your product shape, size, and material. SPiDER offers free initial assessment.
Q2: Can one die make multiple products?
→ Not ideal, but modular designs from SPiDER allow quick changeovers for similar specs.
Q3: How long does a die last?
→ Normally 3–5 years. SPiDER’s wear-resistant coating extends it up to 8 years.
Q4: Standard or custom die?
→ Start with a standard die to test your market; customize later when stable.
Q5: Is technical support important?
→ Absolutely. Good support saves half your learning curve.
SPiDER offers 24/7 hotline, on-site installation, operator training, and lifetime optimization.
🚀 Conclusion: Your Success Begins Here
Choosing the right extrusion die doesn’t have to be complicated.
With clear principles and a trusted partner, your success is guaranteed.
SPiDER Extrusion’s Promise:
✅ Honest advice — no unnecessary upselling
✅ Expert evaluation — backed by experience since 1988
✅ Ongoing support — ensuring consistent production success
Contact SPiDER Extrusion today for a free technical assessment.
Send your product data — and let’s build the perfect extrusion solution together.
